Product Description

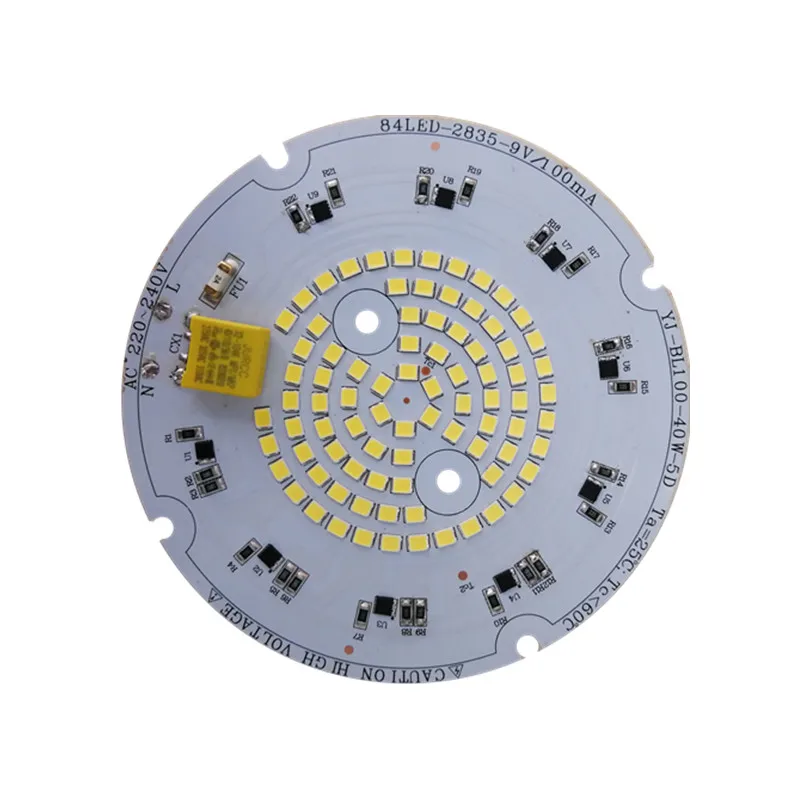

High quality 40W 80 Ra  ac pcb input led module for LED Floodlight

3 Years Warranty! Custom Design! Patent Technology! High Reliability!

Product details

Input Voltage AC 220-240V 50Hz
Power Consumption 40W
Surge Class 1.0KV
Color rendering index 80 Ra
Luminous Efficiency 120 lm/W
Thermal Conductivity 1.0W/m.K
Size 100mm*1.5mm
Emitting Color White color

Product Featured In

1.Linear constant current IC control, photoelectric integration design with stable performance, high reliability and long lifespan.

2.Over-voltage & over-current protection. With optimized constant power IC design, when input voltage varies between AC 220 and 240V, the IC maintains constant power output within ±5% fluctuation range to protect the module from over-voltage and over-current.

3.Over-temperature protection design. When the PCB rises up to a very high temperature after running for some time, the patented technology IC will automatically reduce the output current to control the temperature rising of the PCB.



4.High quality PCT 2835 LED with high color rendering index. Ra > 80. No concern in ultraviolet ray or electromagnetic radiation.

5.No EMI. The module meets qualification standards of certification such as CE-EMC, CE-LVD, SAA, RoHS, PSE and UL.

6.Custom design and Manufacturing. Customized service is available for custom PCB shape and size design, custom color temperature, custom LEDs and so on.




Our Advantages

Company Information

About us



Demo Photoelectric Technology (Wuxi) Co., Ltd.is a professional manufacturer in the design, manufacturing and sale of photoelectric light sources,and other photoelectric lighting applications. The company can be dated back to the former small sized manfacturer, Wuxi Demo Lighting Factory, which was established in 2005. Based on initial assembly lines for OEM orders, our main products lines have been successfully expanded to current LED light sources, LED illuminations and other highly-demanding photoelectric products.

Our Vision: Win-win cooperation is the only way to business success in the long run!


Company Certifications

OUR CERTIFICATES




Packaging & Shipping

Enhancing service of Demo will facilitate the improvement of brand image. Its brightness can be customized according to needs. In accordance with ISO9000, a perfect manufacturing management system and quality control system have been established in Demo Photoelectric Technology (Wuxi) Co., Ltd..
