Dimmable 70W DOB Module 220V AC LED Board PCBA Samsung LM301B & 660nm &730nm DOB LED board for Vegetable light

这里可以自定义设置

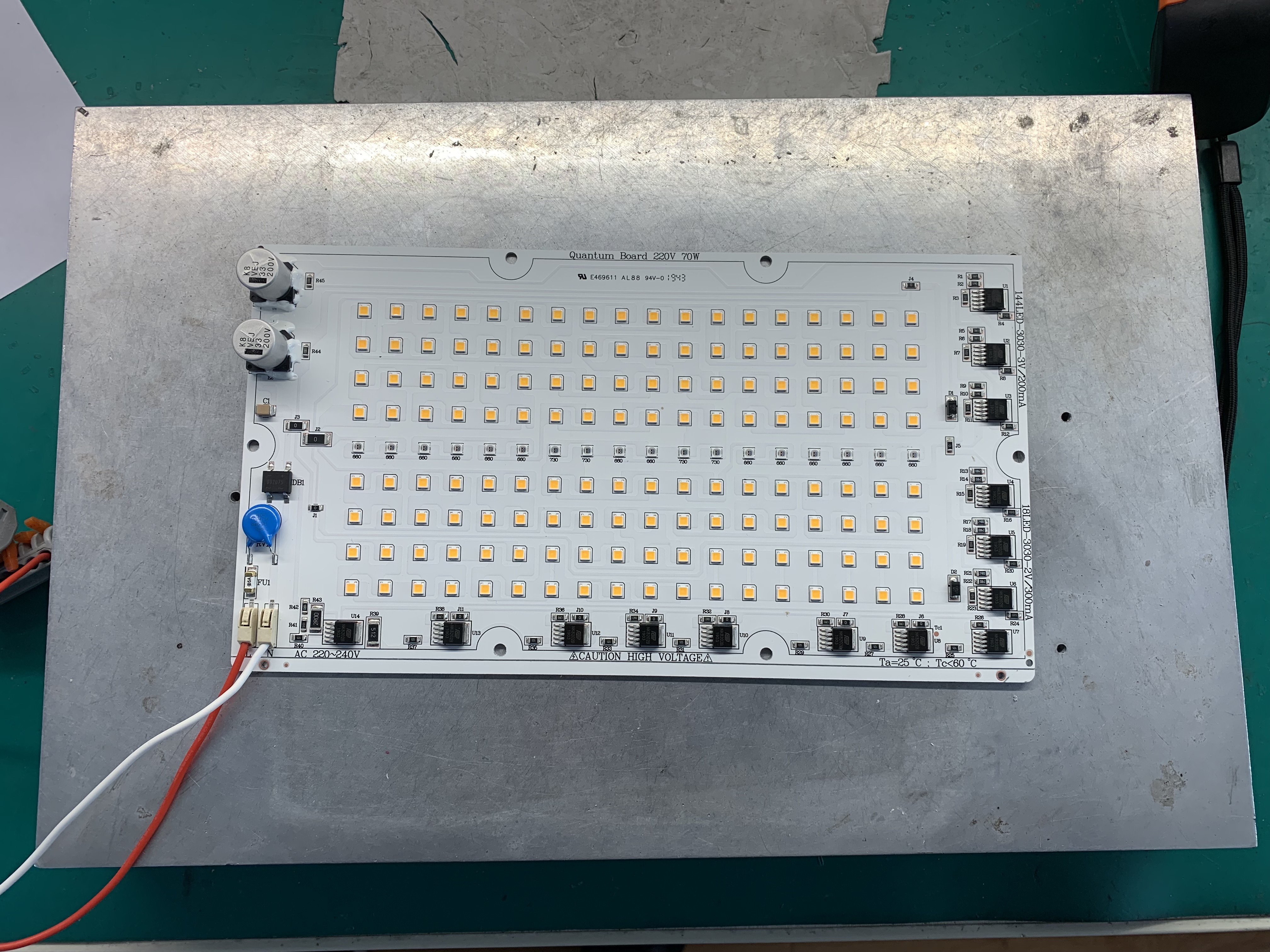

Dimmable 70W DOB Module 220V AC LED Board PCBA Samsung LM301B & 660nm &730nm DOB LED board for Vegetable light
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Product Description
Dimmable 70W DOB Module 220V AC LED Board PCBA Samsung LM301B & 660nm &730nm DOB LED board for Vegetable light





Product details

Input Voltage AC220V 50Hz
Power Consumption 70W
Insulation Class ACW>1.5KV
Surge Class 2KV
Color rendering index 80 Ra
Luminous Efficiency 125 lm/W
Thermal Conductivity 1.5W/m.K
Size

235mmx125mmx1.5mm

LED Samsung LM301B 3000K + 660nm(dual chips) +730nm (dual chips)

Pictures from Customers:



Product Featured In

1.Linear constant current IC control, photoelectric integration design with stable performance, high reliability and long lifespan.

2.Over-voltage & over-current protection.

With optimized constant power IC design, when input voltage varies between AC 220 and 240V, the IC maintains constant power output within ±5% fluctuation range to protect the module from over-voltage and over-current.

3.Over-temperature protection design.

When the PCB rises up to a very high temperature after running for some time, the patented technology IC will automatically reduce the output current to control the temperature rising of the PCB.

4.High color rendering index. Ra of the module is > 80 with EMC standard SMT LED.

5.No EMI.

The module meets qualification standards of certification such as CE-EMC, CE-LVD, SAA, RoHS, PSE and UL.

6.No concern in ultraviolet ray or electromagnetic radiation.

7.Custom design and Manufacturing.

Customized service is available for custom PCB shape and size design, custom color temperature, custom LEDs and so on.



FAQ



Q1: Are you a factory or dealer?

 A1: We are a real and professional manufacturer in driver-on-board LED modules with state-of-the-art                 technology.

Q2: What products you main business?

 A2: We are Specialized in AC DOB LED module ang driver-on -board quantum board for grow light.

Q3: How about your quality?
A3: Use top quality material to make sure stable quality and enough brightness, we supply high cost performance products. Every product passed aging test well then delivery to every client.

Q4: Can you offer customized design and manufacturing?

A4: Yes, we offer customized design and manufacturing. We offer free-of-charge PCB design and electrical and optical test. All our LED modules are customized designs for customers from all over the world.
Q5: How to make a customized LED module?
A5: Firstly, we need to confirm customer requirement through communication.
      Secondly, we create the LED layout drawing and hole bitmap for confirmation
      Thirdly, we make and test the sample board
      Fourthly, we perform electronic and optical property parameters measurement
      Fifthly, we go through reliability test.
      Sixthly, we package and deliver the order package after getting Acceptance of Evaluation from Technical department.
