3 Years Warranty! Custom Design! Patent Technology! High Reliability!

Contact us to tailor the light source boards of your brand lights immediately!

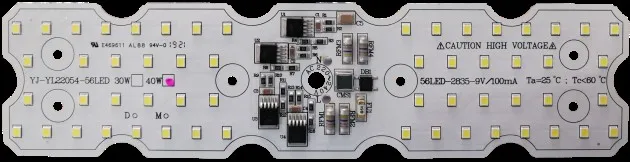

Product details

Input Voltage	AC 220-240V 50Hz
Power Consumption	40W
Power Factor	0.85
THD	<20%
Insulation Class	ACW>1.5KV
Anti-Surge Class	2KV
Color rendering index	Ra 80
Luminous Efficiency	100 lm/W
Thermal Conductivity	1.0W/m.K
PCB Size	220mm*54mm*1.2mm





Product Featured In

1.Linear constant current IC control, photoelectric integration design with stable performance, high reliability and long lifespan.

2.Over-voltage & over-current protection. With two-section constant power IC design, when input voltage varies between AC 220 and 240V, the IC maintains constant power output within ±5% fluctuation range to protect the module from over-voltage and over-current.

3.No EMI. The module meets qualification standards of certification such as CE-EMC, CE-LVD, SAA, RoHS, PSE and UL.

4.High quality PCT 2835 LED with high color rendering index. Ra > 80. No concern in ultraviolet ray or electromagnetic radiation.

5.Over-temperature protection design. When the PCB rises up to a very high temperature after running for some time, the patented technology IC will automatically reduce the output current to control the temperature rising of the PCB.

6.Custom design and Manufacturing. Customized service is available for custom PCB shape and size design, custom color temperature, custom LEDs and so on.
