CE EMC RoHS LVD C-Tick PSE Approved DOB 30W driverless 220v ac led module for street light

这里可以自定义设置
CE EMC RoHS LVD C-Tick PSE Approved DOB 30W driverless 220v ac led module for street light
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Product Description

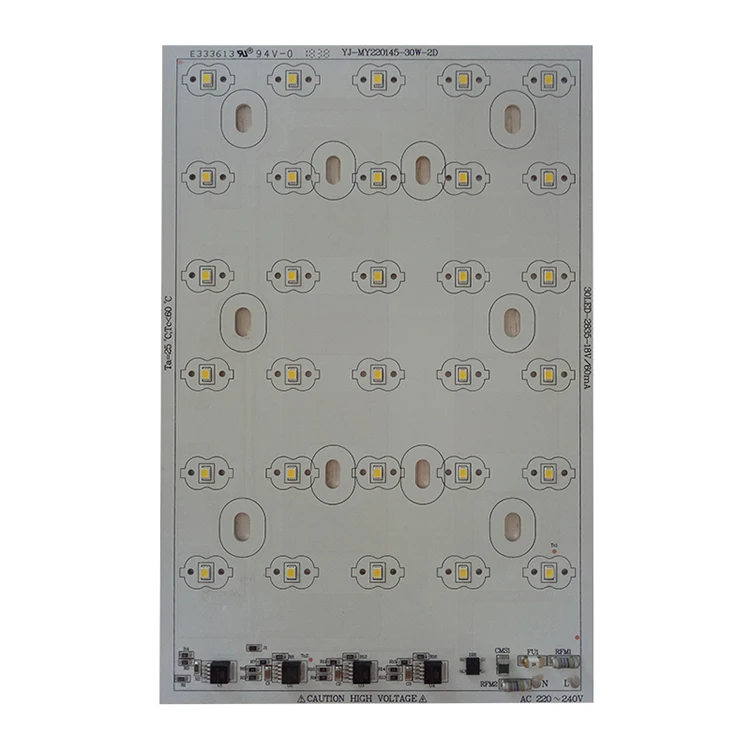

DOB 30W driverless 220v ac led module for street light

3 Years Warranty! Custom Design! Patent Technology! High Reliability!



Product details

Input Voltage AC 220-240V 50Hz
Power Consumption 30W
Power Factor 0.9
THD <20%
Insulation Class ACW>1.5KV
Anti-Surge Class 2KV
Color rendering index 80 Ra
Luminous Efficiency 100 lm/W
Thermal Conductivity 1.0W/m.K
Size 220mm*145mm*1.5mm


Product Featured In

1.Linear constant current IC control, photoelectric integration design with stable performance, high reliability and long lifespan.

2.Over-voltage & over-current protection.

With two-section constant power IC design, when input voltage varies between AC 220 and 240V, the IC maintains constant power output within ±5% fluctuation range to protect the module from over-voltage and over-current.

3.No EMI.

The module meets qualification standards of certification such as CE-EMC, CE-LVD, SAA, RoHS, PSE and UL.

4.High quality PCT 2835 LED with high color rendering index. Ra > 80. No concern in ultraviolet ray or electromagnetic radiation.

5.Over-temperature protection design.

When the PCB rises up to a very high temperature after running for some time, the patented technology IC will automatically reduce the output current to control the temperature rising of the PCB.

6.Custom design and Manufacturing.

Customized service is available for custom PCB shape and size design, custom color temperature, custom LEDs and so on.



FAQ



Q1: Are you a factory or dealer?

 A1: We are a real and professional manufacturer in driver-on-board LED modules with state-of-the-art                 technology.

Q2: What products you main business?

 A2: We are Specialized in AC DOB LED module ang driver-on -board quantum board for grow light.

Q3: How about your quality?
A3: Use top quality material to make sure stable quality and enough brightness, we supply high cost performance products. Every product passed aging test well then delivery to every client.

Q4: Can you offer customized design and manufacturing?

A4: Yes, we offer customized design and manufacturing. We offer free-of-charge PCB design and electrical and optical test. All our LED modules are customized designs for customers from all over the world.
Q5: How to make a customized LED module?
A5: Firstly, we need to confirm customer requirement through communication.
      Secondly, we create the LED layout drawing and hole bitmap for confirmation
      Thirdly, we make and test the sample board
      Fourthly, we perform electronic and optical property parameters measurement
      Fifthly, we go through reliability test.
      Sixthly, we package and deliver the order package after getting Acceptance of Evaluation from Technical department.
Our Advantages

Company Information

About us



Demo Photoelectric Technology (Wuxi) Co., Ltd.is a professional manufacturer in the design, manufacturing and sale of photoelectric light sources,and other photoelectric lighting applications. The company can be dated back to the former small sized manfacturer, Wuxi Demo Lighting Factory, which was established in 2005. Based on initial assembly lines for OEM orders, our main products lines have been successfully expanded to current LED light sources, LED illuminations and other highly-demanding photoelectric products.

Our Vision: Win-win cooperation is the only way to business success in the long run!


Company Certifications

OUR CERTIFICATES




Packaging & Shipping

We can offer professional solution for our led module. This product can stand up to vibrations or shock without damage. With the further development and growth of Demo Photoelectric Technology (Wuxi) Co., Ltd., it's social recognition, popularity and reputation will continue to increase. This product can stand up to vibrations or shock without damage.
