125LM/W 30W CE RoHS Certification 220V AC Input Voltage LED Module PCB PCBA for LED Streetlight
Model:
DM-YJ220NN-LD125120WF-30W-W6000-3030
MOQ:
1000 pcs
Warranty:
5 years
Certification:
CE, CB, RoHS, Reach, FCC, UL, EMC, C-Tick, CCC, PSE, LVD, Energy Star
Quality System:
ISO9001
Payment Channel:
T/T, Alipay, Westernunion and PayPal
Delivery Lead-Time:
12 - 15 days
Start Port:
Shanghai, Ningbo, Guangzhou, Shenzhen
参数暂无数据

Add success, do you want to check your shopping cart?

暂无分享

Main Technical Data

Model No.

DM-YJ220NN-LD125120WF-30W-W6000-3030

Power

30W

Input Voltage

AC 220-240V 50Hz

Input Current

0.137A

Luminous Efficiency

125 LM/W

Color Rendering Index

Ra 80

Anti-Surge Class

4.0kV

Thermal Conductivity

1.0W/m.K

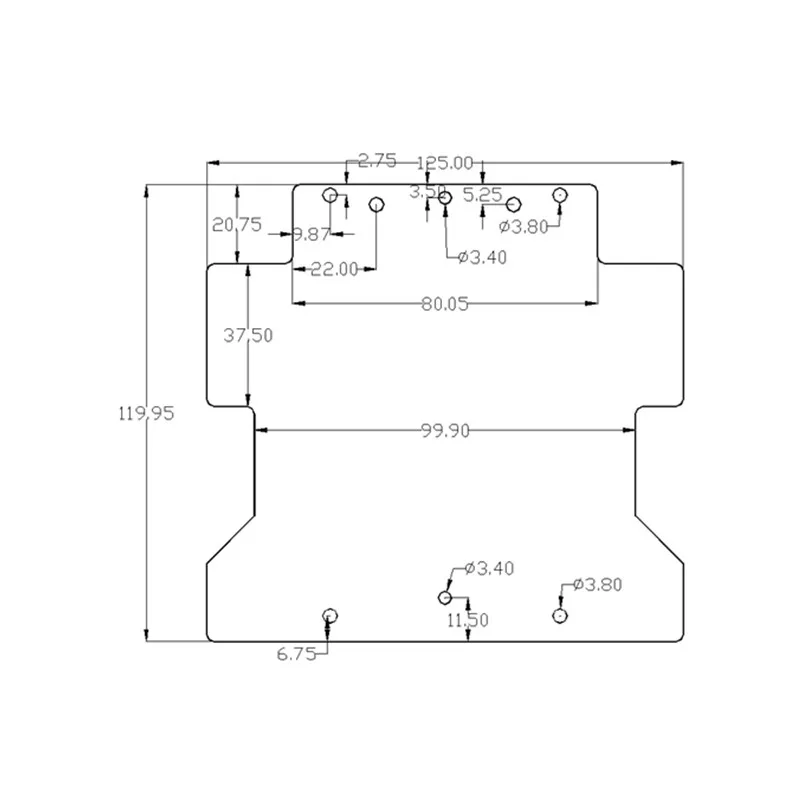

PCB Size

125*120mm*1.2mm

Emitting Color

White Color

Insulation Class

ACW>1.5kV

Operating Temperature

-20deg~45deg

Certification Standard

APPLICATION

  1. Highways and Expressways: Ideal for highway and expressway lighting, ensuring well-lit roadways for long-distance travel, reducing the risk of accidents, and improving traffic flow.

  2. Parking Lots: Suitable for illuminating parking lots of shopping centers, airports, and commercial properties, offering a well-lit and secure environment for vehicles and pedestrians.

  3. Urban Roadways: Enhances urban roadway lighting, creating well-lit city streets for commuters and residents, contributing to a safer and more attractive urban environment.

  4. Bike Lanes and Walkways: Provides clear visibility on bike lanes, jogging paths, and walkways, encouraging outdoor activities and promoting safety for cyclists and pedestrians.

  5. Industrial Areas: Supports industrial area lighting, ensuring adequate illumination for factories, warehouses, and manufacturing facilities, enhancing safety and productivity.

  6. School Campuses: Illuminates school campuses, including parking areas and walkways, improving safety for students, staff, and visitors during evening events.

  7. Public Parks: Enhances public parks and recreational areas by extending usability into the evening hours, allowing people to enjoy outdoor activities and events after dark.

  8. Pedestrian Crossings: Ensures well-lit pedestrian crossings at intersections and crosswalks, increasing safety for pedestrians and reducing accidents at night.

SEND INQUIRY NOW!

Free of charge for customized design of LED light engines! Contact us for details!
