CE RoHs Certification High PF>0.99 Ra>90 15W AC 120V Triac Dimmable DOB Driverless LED Module for LED Downlight and Bulblight

这里可以自定义设置
CE RoHs Certification High PF>0.99 Ra>90 15W AC 120V Triac Dimmable DOB Driverless LED Module for LED Downlight and Bulblight
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Product Description

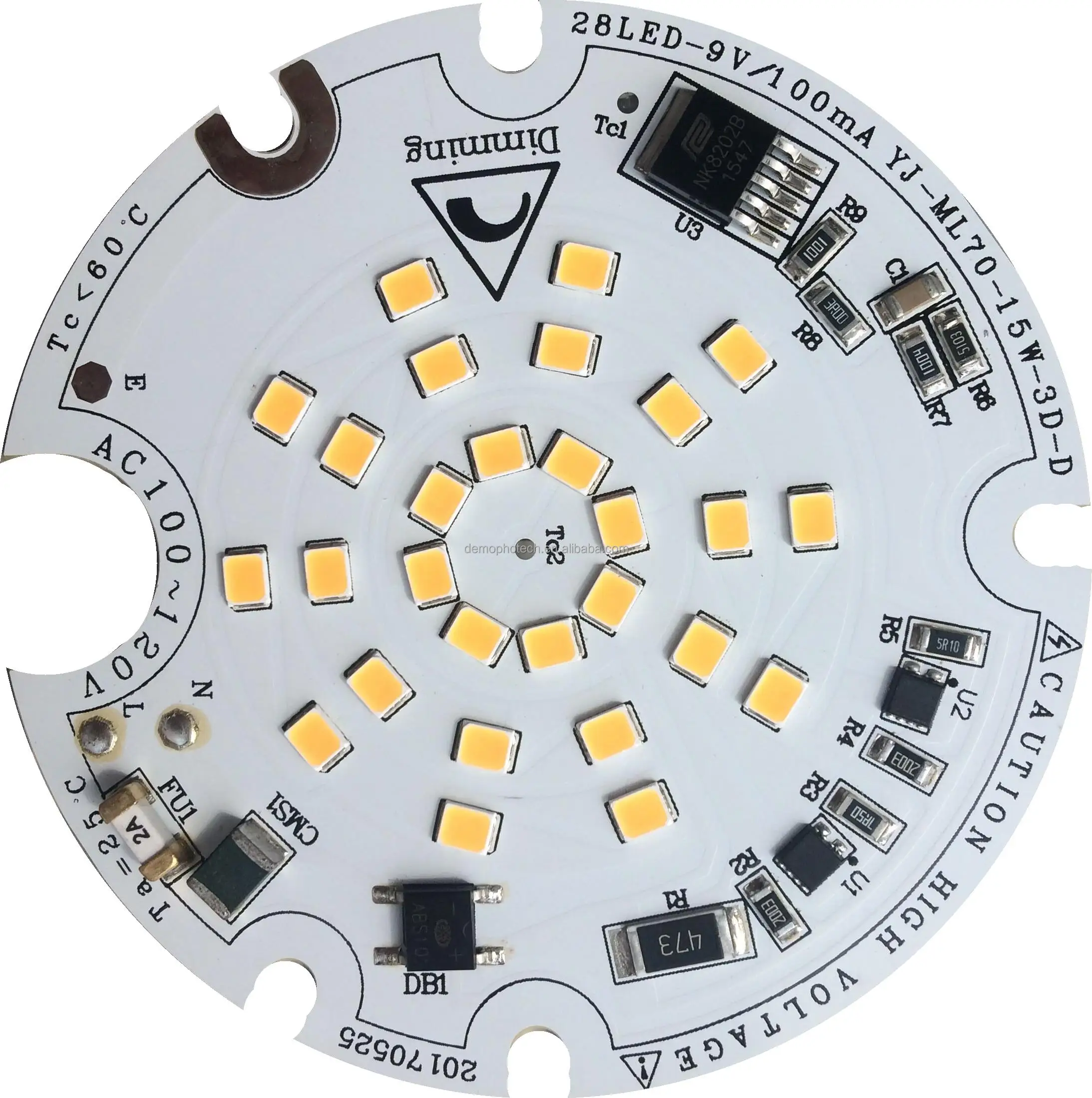

CE RoHs Certification High PF>0.99 Ra>90 15W AC 120V Triac Dimmable DOB Driverless LED Module for LED Downlight and Bulblight

Product details

Model No.

DM-YJ120ND-LP70WF -15W3D-W3000-2835

Power

15W

Input Voltage

AC 100-130V 60Hz

Input current

0.13A

Luminous Efficiency

98 lm/W

Color rendering index

Ra 90

Anti-Surge Class

2.0KV

Thermal Conductivity

1.0W/m.K

Pcb Size

D46mm*2.0mm

Emitting Color

White color

Insulation Class

ACW>1.5KV

Operating Temperature

-20~45°C

Product Featured In

1.Linear constant current IC control, photoelectric integration design with stable performance, high reliability and long lifespan.

2.Over-voltage & over-current protection.

With optimized constant power IC design, when input voltage varies between AC 100 and 130V, the IC maintains constant power output within ±5% fluctuation range to protect the module from over-voltage and over-current.

3.Over-temperature protection design.

When the PCB rises up to a very high temperature after running for some time, the patented technology IC will automatically reduce the output current to control the temperature rising of the PCB.

4.High quality PCT 2835 LED with high color rendering index. Ra > 90. No concern in ultraviolet ray or electromagnetic radiation.

5.No EMI.

The module meets qualification standards of certification such as CE-EMC, CE-LVD, SAA, RoHS, PSE and UL.

6.Custom design and Manufacturing.

Customized service is available for custom PCB shape and size design, custom color temperature, custom LEDs and so on.



FAQ



 Q1: Are you a factory or dealer?

 A1: We are a real and professional manufacturer in driver-on-board LED modules with state-of-the-art                 technology.

Q2: What products you main business?

 A2: We are Specialized in AC DOB LED module ang driver-on -board quantum board for grow light.

Q3: How about your quality?
A3: Use top quality material to make sure stable quality and enough brightness, we supply high cost performance products. Every product passed aging test well then delivery to every client.

Q4: Can you offer customized design and manufacturing?

A4: Yes, we offer customized design and manufacturing. We offer free-of-charge PCB design and electrical and optical test. All our LED modules are customized designs for customers from all over the world.
Q5: How to make a customized LED module?
A5: Firstly, we need to confirm customer requirement through communication.
      Secondly, we create the LED layout drawing and hole bitmap for confirmation
      Thirdly, we make and test the sample board
      Fourthly, we perform electronic and optical property parameters measurement
      Fifthly, we go through reliability test.
      Sixthly, we package and deliver the order package after getting Acceptance of Evaluation from Technical department.
