0.5W High Power Dip 5mm White LED

这里可以自定义设置
0.5W High Power Dip 5mm White LED
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障



Product Description

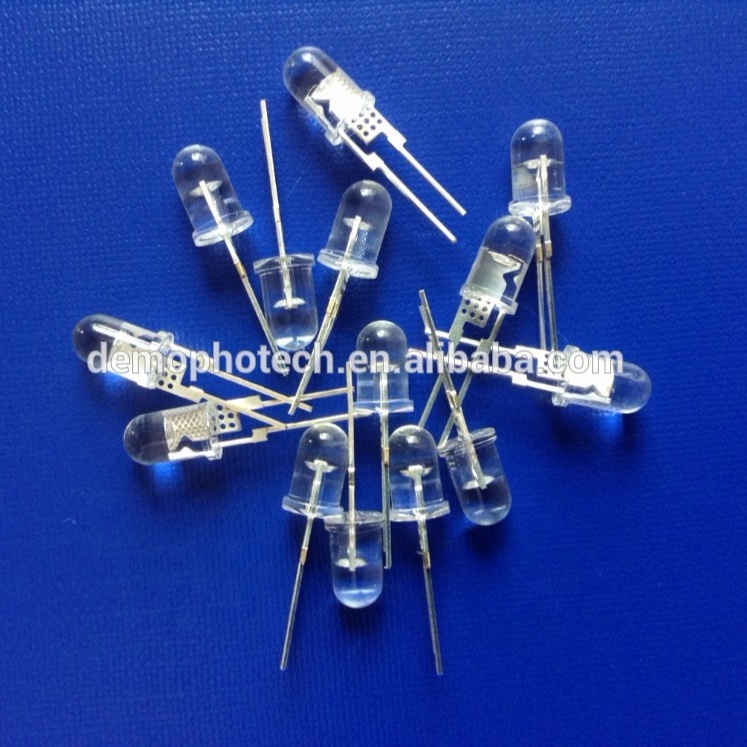

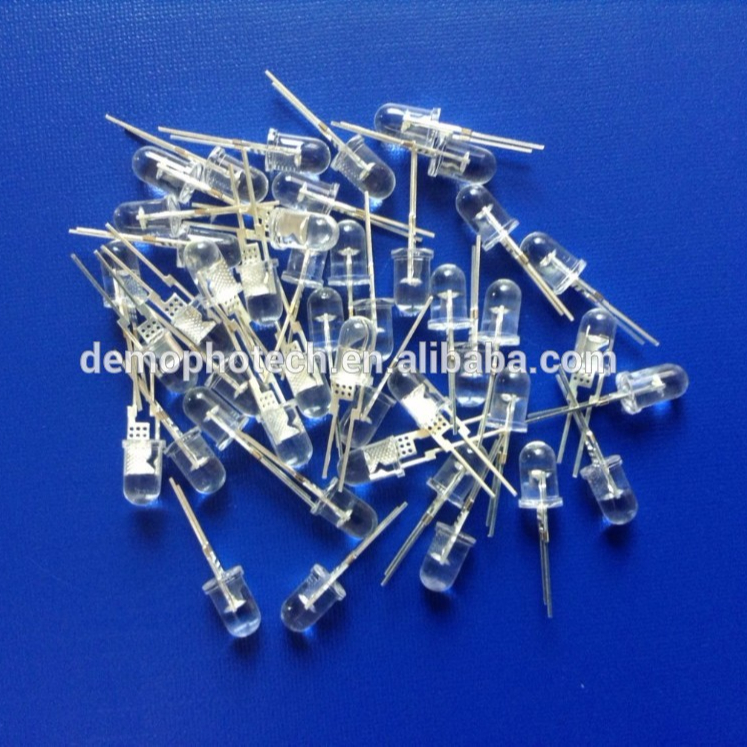

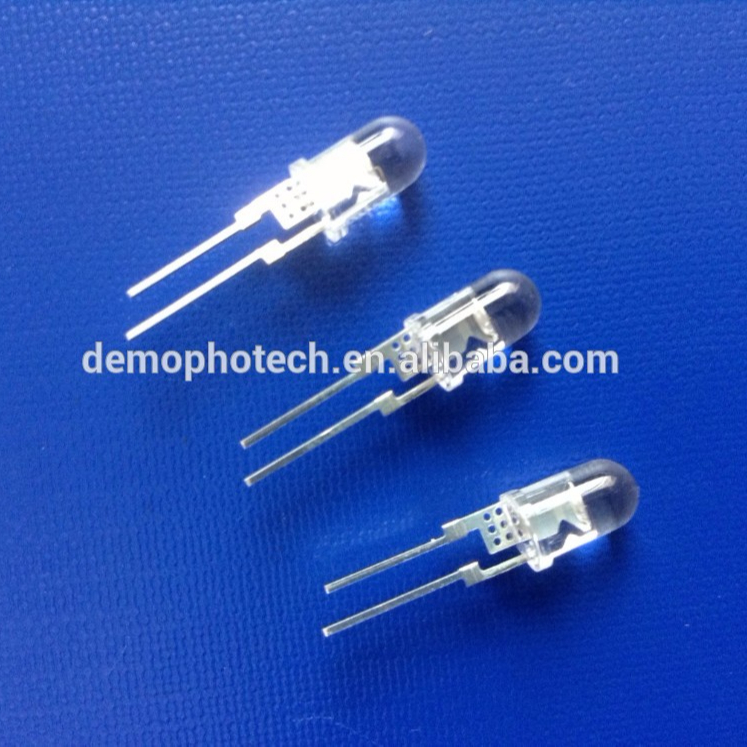

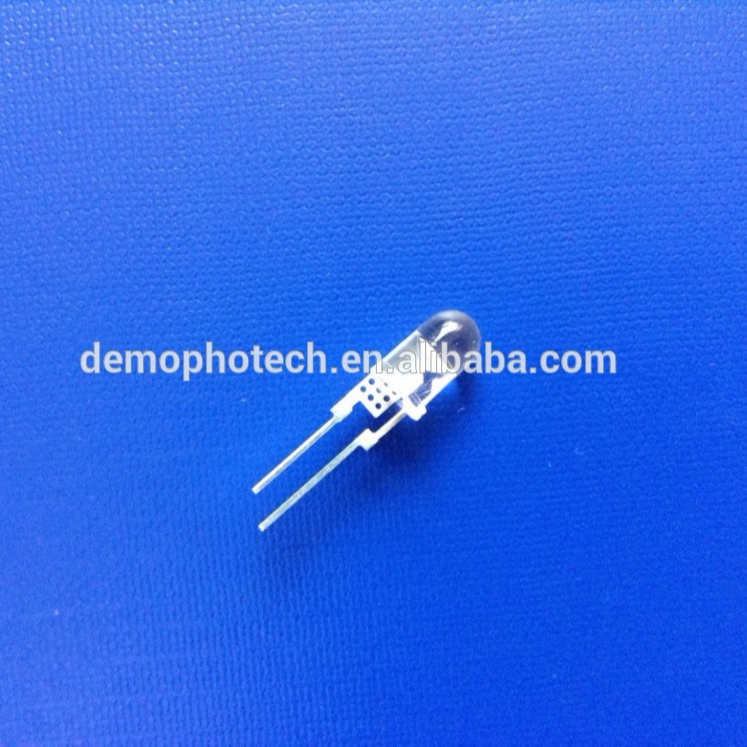

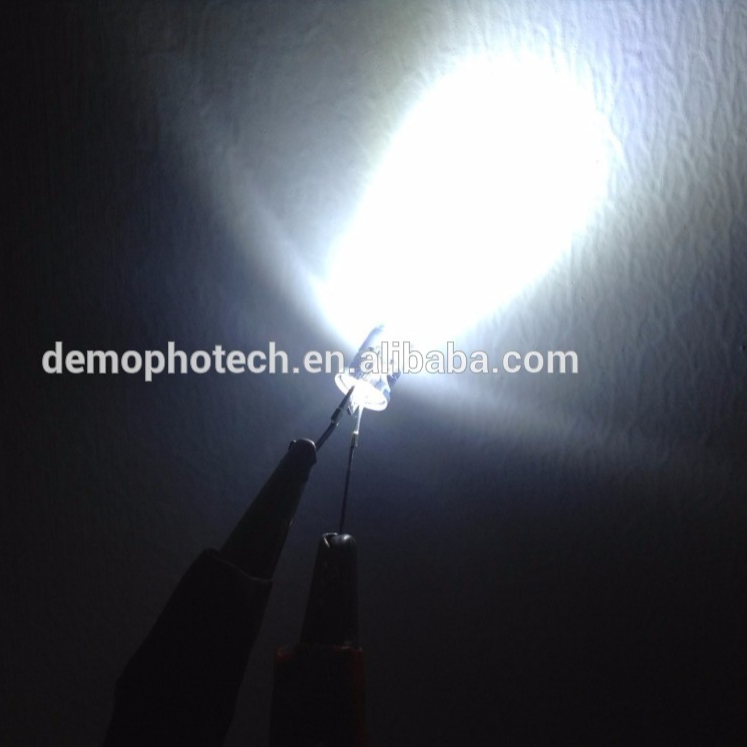

 0.5W High Power Dip 5mm White LED

High-Quality Long Lifespan! Low Light Attenuation! Customize Manufacturing!

Product details

ColorNatural White Color
Size5mm
Shape round head
 Lens clear
Power Consumption 0.5W
Forward Voltage 3.0-3.6V
 Forward current120mA
 Viewing angle 35deg
Color temperature 7000-9000K/9000-12000K
Luminous intensity35000-40000mcd
Luminous flux50-56lm



The First Choice in LED Customized Manufacturing!

LED Manufacturer with 10+ years Experience!

High Quality Long Lifespan LED!

Our Service

1)Customized View angles are acceptable! 10deg, 15deg, 30deg, 45deg, 60deg, 90deg, 120deg, 160deg, etc. for options!

2)Customized LED shapes for options, round head shape, bullet head shape, flat head shape, rectangle shape, oval shape, concave shape, straw-hat shape, etc.

3)Various LED size for options, 2mm/3mm/4mm/5mm/8mm/10mm



Notice for LED Handling

1)All personnel in direct contact with the LEDs throughout the process of use shall perform anti ESD measures. Do not touch the LEDs directly with hands

2) When welding, the operator needs to pay attention to the welding time, welding temperature, and the positive and negative poles of LEDs should be clearly distinguished.

3) Electrical parameters such as current and voltage should not exceed the rated value.



Precautions for LED Soldering

1)The welding time should not exceed 3 seconds

2)The welding temperature is less than 260 ℃

3)Reflow welding is allowed only once

4)When welding, distinguish the positive and negative poles and avoid the lens to avoid damaging the lens.

5)When welding, distinguish the positive and negative poles of LEDs, take care to avoid touching the LED lens from lens-damaging.

6)Especially for IR LEDs and UV LEDs, try to take cooling measures as good as possible to provide adequate heat dissipation area.

7)For longer life of IR LEDs and UV LEDs, it is recommended to use a more stable constant current driver instead of a constant voltage driver.



Company Information

About us



Demo Photoelectric Technology (Wuxi) Co., Ltd.is a professional manufacturer in the design, manufacturing and sale of photoelectric light sources,and other photoelectric lighting applications. The company can be dated back to the former small sized manfacturer, Wuxi Demo Lighting Factory, which was established in 2005. Based on initial assembly lines for OEM orders, our main products lines have been successfully expanded to current LED light sources, LED illuminations and other highly-demanding photoelectric products.

Our Vision: Win-win cooperation is the only way to business success in the long run!


LED certificates



Packaging & Shipping















Our quality control system is fully through entire production process of led module. This product can emit many different colors. Demo Photoelectric Technology (Wuxi) Co., Ltd. seizes market opportunities in the new era of healthy consumption. This product can emit many different colors.
